FreeScan UE 7 / 11
The FreeScan UE 7 and UE 11 are lightweight handheld 3D scanners weighing only 750g, designed for ease of use and prolonged operation without fatigue. They offer a large scan area of up to 510mm x 520mm, metrology-class high accuracy up to 0.02mm, and compatibility with various inspection software solutions like Geomagic Control X, Polyworks, and Verisurf.
- High Efficiency: Large scan area of 510mm x 520mm for smoother and more efficient scanning experience.
- Metrology-Class Accuracy: Achieves accuracy up to 0.02mm with volumetric accuracy of 0.02mm + 0.04mm/m.
- Stability of Repetitive Measurement: Consistent results even when measuring the same workpiece repeatedly.
- Wide Range of Material Adaptations: Supports scanning of black and reflective surfaces, enhancing application versatility.
- Simple Operation: User-friendly interface and straightforward workflow setup for easy operation.
- Data Compatibility: Outputs in multiple formats including OBJ, STL, ASC, PLY, 3MF, compatible with major 3D design and inspection software.
- Lightweight and Ergonomic Design: Designed for ergonomic handling to ensure comfort during extended use.
Applications
Ideal for a wide range of applications across industries including:
- • Automotive industry for inspection and design.
- • Transportation for maintenance and quality control.
- • Mold inspection for tool and mold adjustment.
- • Energy sector for machinery inspection.
- • Aerospace industry for structural analysis and design.
- • Manufacturing for production line assembly and quality assurance.

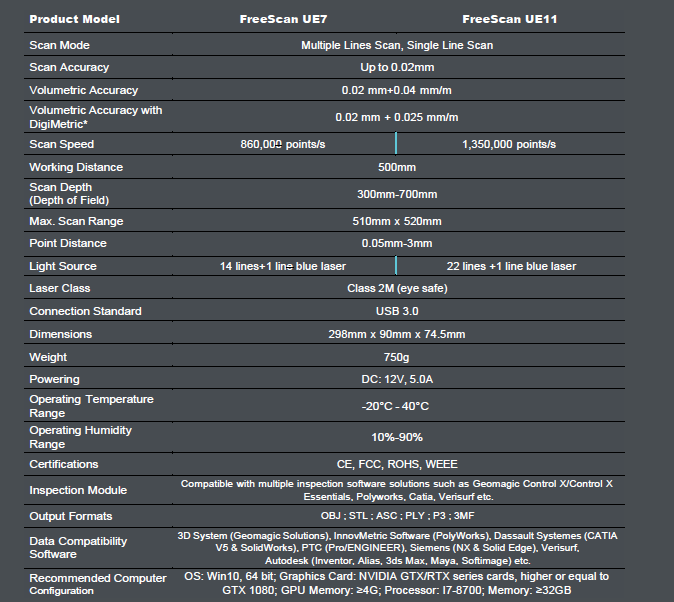

Specifications
Product Model: FreeScan UE 7, FreeScan UE 11
Scan Modes: Multiple Lines Scan, Single Line Scan
Scan Accuracy: Up to 0.02mm
Volumetric Accuracy: 0.02mm + 0.04mm/m
Scan Speed: 860,000 points/s (UE 7), 1,350,000 points/s (UE 11)
Working Distance: 500mm
Scan Depth (Depth of Field): 300mm - 700mm
Light Source: 14 lines + 1 line blue laser (UE 7), 22 lines + 1 line blue laser (UE 11)
Laser Class: Class 2M (eye-safe)
Connection Standard: USB 3.0
Dimensions: 298mm x 90mm x 74.5mm
Weight: 750g
Power Input: DC 12V, 5.0A
Operating Temperature Range: -20°C to 40°C
Operating Humidity Range: 10% - 90%
Certifications: CE, FCC, ROHS, WEEE
Inspection Module Compatibility
Compatible with inspection software solutions such as Geomagic Control X/Control X Essentials, Polyworks, Catia, Verisurf, and more, ensuring seamless integration into existing workflows.
